--------------------------------------------------  General  --------------------------------
CG Products parts for general aircraft construction


ClickBond
/1306 AN-3 x 0.500"

Price: $7.50 bag of 10 pcs
Product Information: see installation cartoon Clickbonds


CZLB-18
/1043 Landing Brake Bellhorns
Location: /Cozy Mk-IV Parts/Chapter 09 Main Landing Gear & Landing Brake
Price: $8.14 (2 required)
Product Information: 2024-T3 aluminum
Value added features:  Alodined



CG-NWA


CG-NWA
/1213  Gerdes Nosewheel Assembly
Location:
/Cozy Mk-IV Parts/Chapter 13 Nose & Nose Gear
Price:
$120.00(1 required)
Product Information: CG-MKNG-1's shown must be purchased separately below.
Value Added Features: Click on image for details about nosewheels.



CG-MKNG-1
/1138  Nose Wheel Bushing, Gerdes Nosewheel
Location:
/Cozy Mk-IV Parts/Chapter 13 Nose & Nose Gear
Price:
$16.00 (2 required)
Product Information: 2024-T3 aluminum
Value Added Features: Alodined, this part is 0.100" shorter on the internal portion of the bushing than shown in the plans, requires spacer



CG-MKNG-1
M/1138  Nose Wheel Bushing, Matco Nosewheel
Location:
/Cozy Mk-IV Parts/Chapter 13 Nose & Nose Gear
Price:
$16.00 (2 required)
Product Information: 2024-T3 aluminum.
Value Added Features: Alodined, these parts in conjunction with the precision internal spacer allows the use of the Matco 4" nosewheel.




CG-MKNG-1
M/ Nose Wheel Bushing, Grove Nosewheel
Location:
/Cozy Mk-IV Parts/Chapter 13 Nose & Nose Gear
Price:
$16.00 (2 required)
Product Information: 2024-T3 aluminum.
Value Added Features: Alodined, these parts in conjunction with the precision internal spacer allows the use of the Grove 4" nosewheel.




CG-
FCH/1234  Forward Compartment Hinge
Location:
/Long-EZ, Cozy III, Cozy Mk-IV Parts/Chapter 13 Nose & Nose Gear
Price:
$24.00 (2 required)
Product Information: 6061-T6 aluminum.
Value Added Features: Parts are patterned after Berkut style FCH. Parts were laser cut then tumble deburred, not alodined in case you wish to polish.




MKCS-71
/1036  Rudder Cable Pulley Bracket, 90 deg
Location:
/Cozy Mk-IV Parts/Chapter 15 Firewall
Price:
$7.25 (4 required)
Product Information: Stainless steel. For Cozy  and Long-Ez with forward mounted master cylinders
Two required for each pulley, two pair required per plane.
Value Added Features: Laser cut




CS-72
/1140  Rudder Cable Pulley Bracket, 29 deg
Location:
/Cozy Mk-IV Parts/Chapter 15 Firewall
Price:
$12.14 (2 sets required)
Product Information: Stainless steel. For Cozy and Long-Ez with forward master cylinders
These are provided as a two piece set, two sets required.
Value Added Features: Laser cut








CG-JSTT
/1129  Joystick Torque Tube Assembly
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$48.00 ea (2 required)

Product Information: Pre-assembled CS-105, CS-106, CS112. For Cozy Mk-IV
May be used with Long-Ez when combined with better Mk-IV style CZSA forked stick assembly. Image shows control stick end of tube.

Value Added Features: precision centerless ground to fit in sealed ball bearing assembly, cadmium plated. CS-106 has been alodined, CS-105 & CS-106 are fixtured, crossdrilled undersized then the cadmium plated CS-112 is press fit through the assembly.

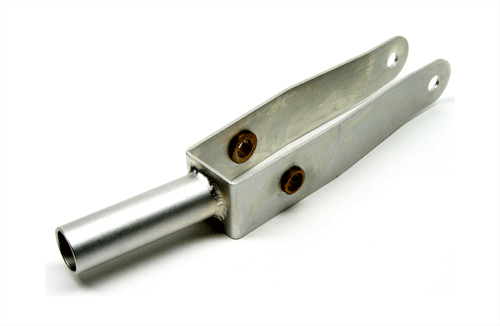

CZSA
/1024  Stick Assembly
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$69.00 (2 required)
Product Information: 4130-N steel, cadmium plated with 2 Oilite bronze bushings pressed in place.

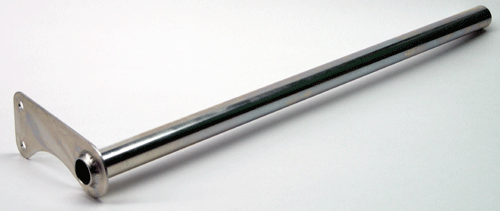

MKCS124,L
/1027  Control Torque Tube Bellcrank, Left
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$49.00 (1 required)
Product Information: 4130-N steel, cadmium plated
Value Added Features: 5/8”diameter tube  precision centerless ground to fit in sealed ball bearing assembly, cadmium plated




MKCS124,R
/1028  Control Torque Tube Bellcrank, Right
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$49.00 (1 required)
Product Information: 4130-N steel, cadmium plated
Value Added Features: 5/8”diameter tube has been precision centerless ground to fit in sealed ball bearing assembly, cadmium plated.
Note: can be used in Long-Ez as well




CG-CS-
108/117/
/1243  Control System Bearing Assembly
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$50.00 (4 required)
Product Information: Sealed ball bearing in anodized lightweight aluminum housing. 5/8" ID. Use matching precision ground tubes CS-115 and CS-JSTT Joystick Torque Tube Assemblies with these.

Value Added Features: Includes Clickbond mounting hardware, see instructions on our web site.

Note: can be used in Long-Ez as well




CG-CS-
123/
/1196  Bearing Assembly, Firewall
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$54.00 (2 required)
Product Information: Sealed ball bearing in anodized lightweight aluminum housing. 5/8" ID. Use matching precision ground control torque tube bellcranks CS-124-L&R with these.

Value Added Features: Bearing installed in housing with snap ring.

Note: can be used in Long-Ez as well




CS-1A
/1052  Pushrod Threaded Insert, Aluminum
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$8.00 (4 required)
Product Information: 2024 Aluminum, AN-4 thread, Alodine plated
Value Added Features:
Length has been increased slightly to allow rod ends to be screwed in deeper if necessary.
Note:
can be used in Long-Ez as well



CS-50
/1029  Pushrod Threaded Insert, Steel
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$8.31 (10 required)
Product Information: Steel. 4130-N steel, AN-4 thread, cadmium plated Value Added Features: Length has been increased slightly to allow rod ends to be screwed in deeper if necessary.
Note:
can be used in Long-Ez as well



CG-
PI
/1295  Insert, baggage pod mounting
Location:
/General Parts/Chapter 19 Wings
Price:
$6.57 (12 required)
Product Information: 2024-T3 aluminum 1" long x 3/8" dia, AN-3 thread thru.
Value Added Features: part has been knurled in bonding area
Note: can be used in any place you need internal threads for mounting parts
can be cut shorter or partially buried in foam to give a standoff, many uses.



CS-17
/1032  Rudder Pedal Thimble Spacer
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$5.00 (2 required)
Product Information: 2024-T3 aluminum, alodined
Note: can be used in Long-Ez as well




CS-115
/1107  Tube, Rear Seat Bearing
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$5.00 (2 required)
Product Information: 4130-N steel
Value Added Features: 5/8”diameter tube has been precision centerless ground to fit in sealed ball bearing assembly, cadmium plated
Note: can be used in Long-Ez as well




CS-201
/1035  Bushing
Location:
/Cozy Mk-IV Parts/Chapter 16 Control System
Price:
$5.00 (8 required)
Product Information: 4130-N steel, cadmium plated. Used to space spherical rod ends away from control sticks etc
Note: can be used in Long-Ez as well




RT-2L
/1046  Roll Trim Bracket, Left
Location:
/Cozy Mk-IV Parts/Chapter 17 Trim and Landing Brake
Price:
$4.50 (1 required)
Product Information: 4130-N steel, cadmium plated


RT-2R
/1047  Roll Trim Bracket, Right
Location:
/Cozy Mk-IV Parts/Chapter 17 Trim and Landing Brake
Price:
$4.50 (1 required)
Product Information: 4130-N steel, cadmium plated

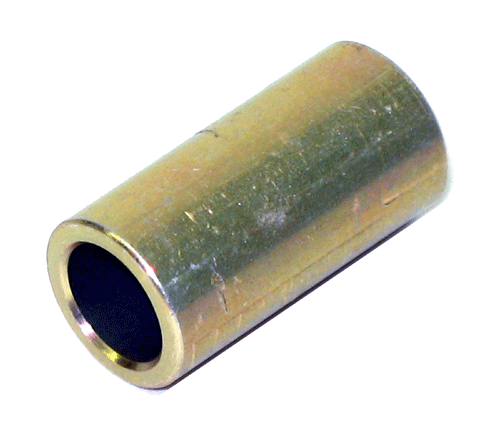

CZLB-1
/1050|  Spacer
Location:
/Cozy Mk-IV Parts/Chapter 17 Trim and Landing Brake
Price:
$5.00 (2 required)
Product Information: 2024-T3 aluminum, alodined






Picture not available


CZLB-6
/1071|  Spacer
Location:
/Cozy Mk-IV Parts/Chapter 17 Trim and Landing Brake
Price:
$4.37 (2 required)
P
roduct Information: 4130-N steel, cadmium plated




CS-127
/1076|  Bracket, Aileron Bellcrank Linkage
Location:
/Cozy Mk-IV Parts/Chapter 19 Wings
Price:
$7.60 (4 required)
Product Information: 304 stainless steel
Value Added Features: holes for end stops added. Additional hole added for pinning aileron linkage while centering control surfaces and sticks.





CS-128/1141|  Bellcrank Aileron Linkage
Location:
/Cozy Mk-IV Parts/Chapter 19 Wings
Price:
$53.00 (2 required)
Product Information: 2024-T3 aluminum, alodined, has ball bearing assembly riveted in place
Value Added Features: Additional hole added for pinning aileron linkage while centering control surfaces and sticks.




CS-131
/1078|  Spacer, Aileron Bellcrank Linkage
Location:
/Cozy Mk-IV Parts/Chapter 19 Wings
Price:
$5.38 (2 required)
Product Information: 4130-N steel, cadmium plated


CS-132
/1079|  Bellcrank, Aileron Tube
Location:
/Cozy Mk-IV Parts/Chapter 19 Wings
Price:
$50.00 (2 required)
Product Information: 4130-N steel, cadmium plated
Value Added Features: the major radius on this part is per plans, unlike the large radius on the former Brock part (done for easier welding) that could cause clearance issues
Note: this is a required upgrade to all Long-Eze’s




CS-152
/1101|  Tube, Aileron Bellcrank Bearing,
Location:
/Cozy Mk-IV Parts/Chapter 19 Wings
Price:
$5.00 (2 required)
Product Information: 4130-N steel, cadmium plated
Value Added Features: 5/8”diameter tube has been precision centerless ground to fit in sperical ball bearing assembly, cadmium plated
Note: can be used in Long-Ez as well




CS-301L
/1087|  Rudder Horn, Left
Location:
/Cozy Mk-IV Parts/Chapter 20 Winglets and Rudders
Price:
$7.50 (1 required)
Product Information: 304 stainless steel
Value Added Features: laser cut
Note: can be used in Long-Ez as well




CS-301R
/1088|  Rudder Horn, Right
Location:
/Cozy Mk-IV Parts/Chapter 20 Winglets and Rudders
Price:
$7.50 (1 required)
Product Information: 304 stainless steel
Value Added Features: laser cut
Note: can be used in Long-Ez as well
