Components to support 13B, Renesis & 20B Rotary engine installations

Parts Common to 13B/Renesis & 20B Engines




CG-RX-LMK Lord Mount Kit,
Rotary Engine Mount vibration isolators
Price: $80.08 (4 sets)
Product Information: Includes rubber vibration isolators and hardware for our rotary engine mounts.


Click For A Larger Image

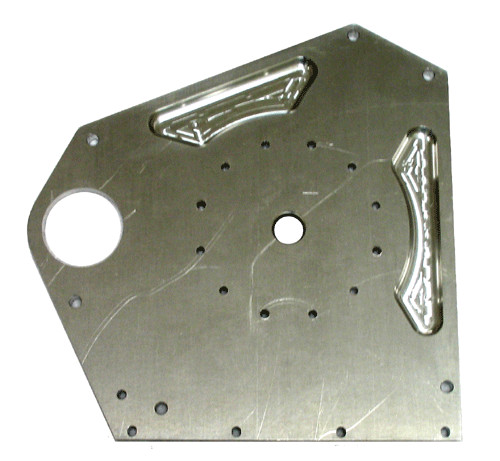

CG-RX-RMP Reduction Drive Mounting Plate / Side Starter

Price: (only available with complete mounting kit at this time)
Product Information: Side mount starter type redrive mounting plate for RWS Redrive.
Includes standoffs, spacers and hardware.  Requires Lord Mount Kit, 13B or 20B Bolt Kit and Tubular Mount.


Click For A Larger Image

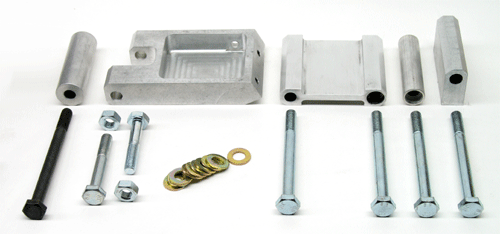

CG-RX-RMP standoff kit (only available with above CG-RX-RMP)

Price: (only available with complete mounting kit at this time)
Product Information: Side mount starter type redrive mounting plate standoff kit for RWS Redrive.Includes standoffs, spacers and hardware.  Requires Lord Mount Kit, 13B or 20B Bolt Kit and Tubular Mount.


13B 13B & Renesis Engines




CG-RX-BMSS-13B  Bed Mount Plate & Reduction Drive Mounting Plate kit

Price: $1016.50
Product Information: Includes side mount starter type redrive mounting plate, standoffs, spacers and bed mounting plate. Requires Lord Mount Kit, 13B Bolt Kit and Tubular Mount.


Click For A Larger Image


EM-MKRX-13B

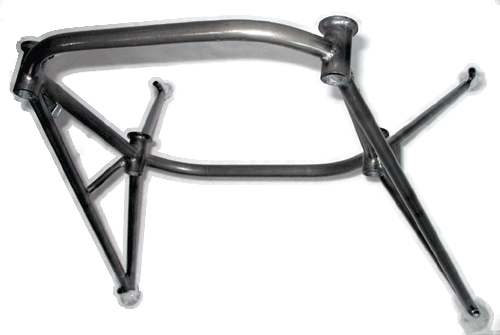

Cozy Mk-IV 13B/Renesis Tubular Engine Mount
Location:
/Cozy Mk-IV Parts/Chapter 23 Engine Installation
Price: $1150.00
Product Information: 4130-N steel tubing. This mount is for mounting a two rotor engine. Requires matching engine bed mounting plate. Fits CCI bed plates.


Click For A Larger Image


EM-LERX-13B
Long-EZ Heavy Duty 13B/Renesis Engine Mount
Location:
/Long-EZ Parts/Chapter 23 Engine Installation
Price: $1150.00 (1 required)
Product Information: 4130-N steel tubing. This mount is for mounting a two rotor engine. Requires matching engine bed mounting plate. Fits CCI bed plates.
Click image for larger picture
Call for availability


CG-RX-RING-13B  Ring, Bed Plate
13B/Renesis Rotary Engine Mount
Price: $320.00
Product Information: 4130-N steel tubing. This ring is the bed mounting plate support portion of our engine mounts for welding your own custom mount for a two rotor engine. Requires matching engine bed mounting plate. Fits CCI bed plates.


Click For A Larger Image

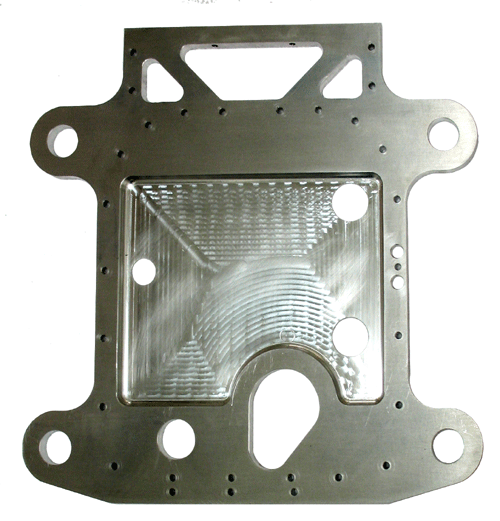

CG-RX-MMP-13B  Bed Mounting Plate,
13B/Renesis Rotary Engine Mount
Price: $464.64
Product Information: 6061-T6 Aluminum. Bed Mounting Plate. Extended portion at flywheel end mates to our reduction drive mounting plate for added rigidity.
Applicable with any airframe, fits CCI tubular mounts.


20B 20B Engines




CG-RX-BMSS-20B  Bed Mount Plate & Reduction Drive Mounting Plate kit

Price: $1109.34
Product Information: Includes side mount starter type redrive mounting plate, standoffs, spacers and bed mounting plate. Requires Lord Mount Kit, 20B Bolt Kit and Tubular Mount.


Click For A Larger Image


EM-MKRX-20B
Cozy Mk-IV 20B Rotary Engine Mount
Location:
/Cozy Mk-IV Parts/Chapter 23 Engine Installation
Price: $1150.00
Product Information: 4130-N steel tubing. This mount is for mounting a three rotor engine. Requires matching engine bed mounting plate .





EM-LERX-20B  Long-EZ
20B Rotary Engine Mount
.
Location:
/Long-EZ Parts/Chapter 23 Engine Installation
Price: $1150.00
Product Information: 4130-N steel tubing. This mount is for mounting a three rotor engine. Requires matching engine bed mounting plate.

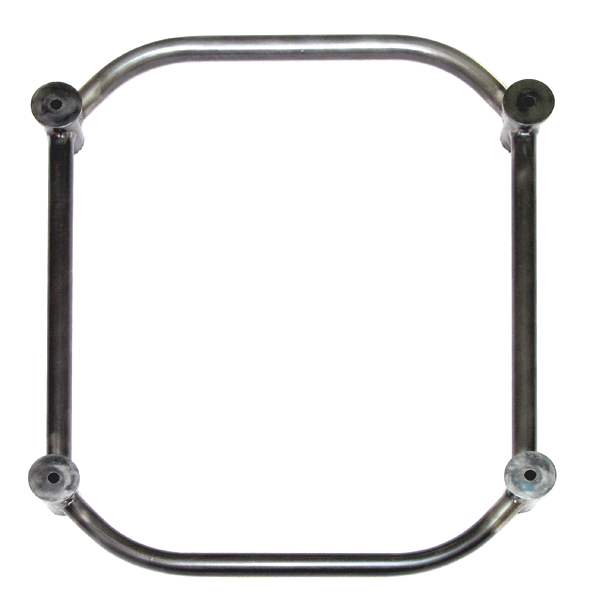

CG-RX-RING-20B  Ring, Bed Plate
20B Rotary Engine Mount
Price: $320.00
Product Information: 4130-N steel tubing. This ring is the bed mounting plate support portion of our engine mounts for welding your own custom mount for a three rotor engine. Requires matching engine bed mounting plate.


Click For A Larger Image


CG-RX-MMP-20B  Bed Mounting Plate,
20B Rotary Engine Mount
Price: $557.48
Product Information: 6061-T6 Aluminum. Bed Mounting Plate. Extended portion at flywheel end mates to our reduction drive mounting plate for added rigidity.
