Misc |
Miscellaneous parts |
 |

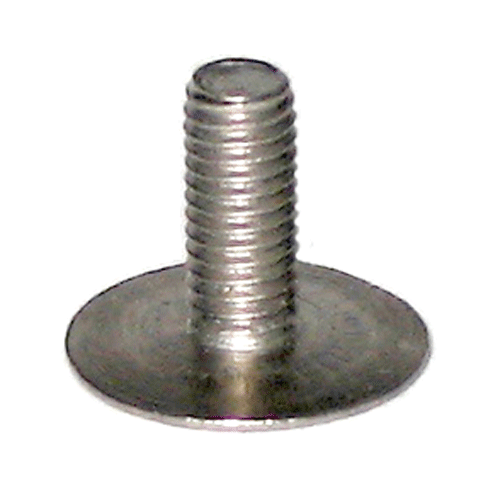

ClickBond/1306 AN-3 x 0.500"
Price:
$12.50 bag of 10 pcs
Product Information:
see
installation cartoon Clickbonds |
Chapter
8 |
Headrests and Seat Belts |
|
 |

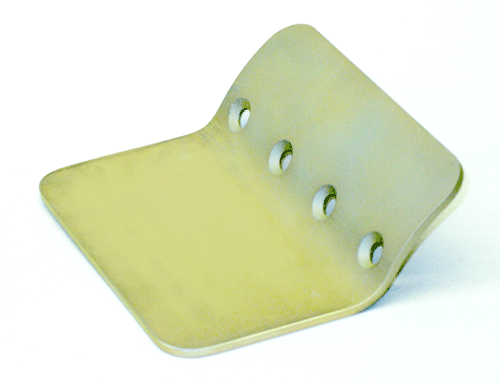

STEP/1045
Step
Location:
/Long-ez Parts/Chapter 08 Headrest, Seat Belts
Price:
$36.67 (1 required)
Product Information:
port side exterior step, 1/8" 2024-T3 aluminum, bent to conform to
fuselage curvature,
Value
added features:
bonding area sandblasted for
adhesion, entire part alodined.
|
Chapter
9 |
Main Gear & Landing Brake |
|
 |
LMGAB/1156|

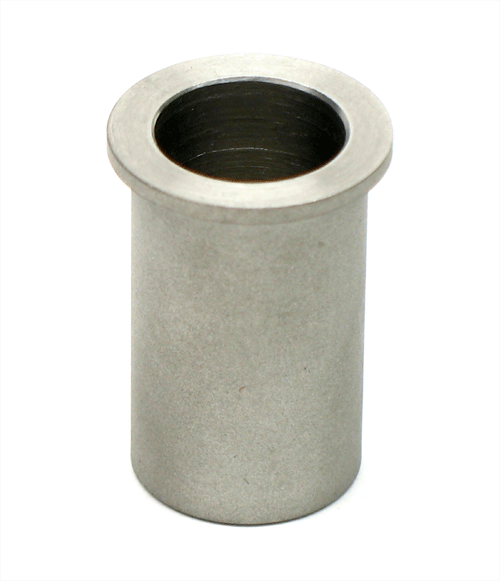

Bushing, Main Gear
Location:
/Long-Ez
Parts/Chapter 9 Main Landing Gear and Landing Brake
Price:
$15.25 (4 required)
Product Information:
304 stainless steel
|
|
 |

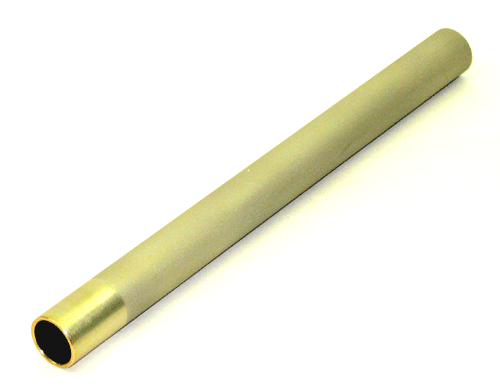

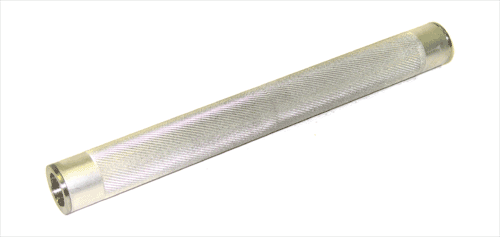

LMGA/1158
Tube/Bushing
Assy, Long-ez Main Gear Mtg
Location:
/Long-ez Parts/Chapter 09 Main Landing Gear & Landing Brake
Price:
$64.31 (2 required)
Product Information:
4130 steel tube 304 stainless steel bush press fit into each end
Value added features:
knurled on exterior for superior bond strength, cadmium plated.
|
|
 |

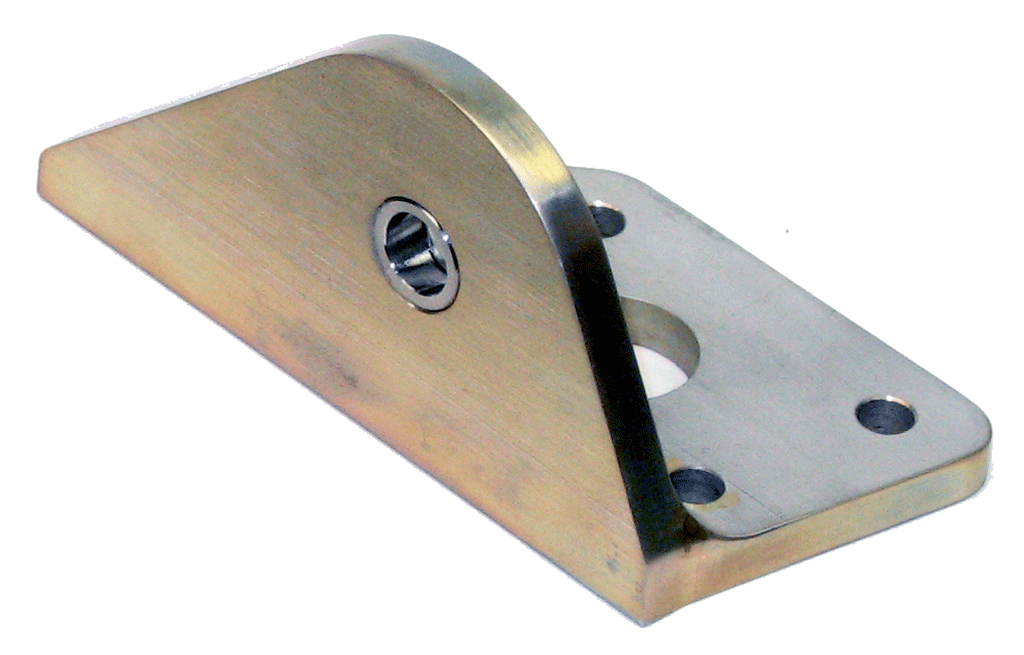

LE-MGA-LF/1280
Left Front
Long-ez Main Gear
Attach Bracket
Location:
/Long-ez Parts/Chapter 09 Main Landing Gear & Landing Brake
Price:
$76.50 (1 required)
Product Information:
1/4" 6061 alloy extrusion.
Value added features:
CNC machined, abrasive blasted on fuselage mounting side, alodined,
stainless steel bushing in trunion bolt hole. Mounting hole is raised
0.4" per CP27, pg 7, LPC #45 REF plans pg 9-3.
|
|
 |

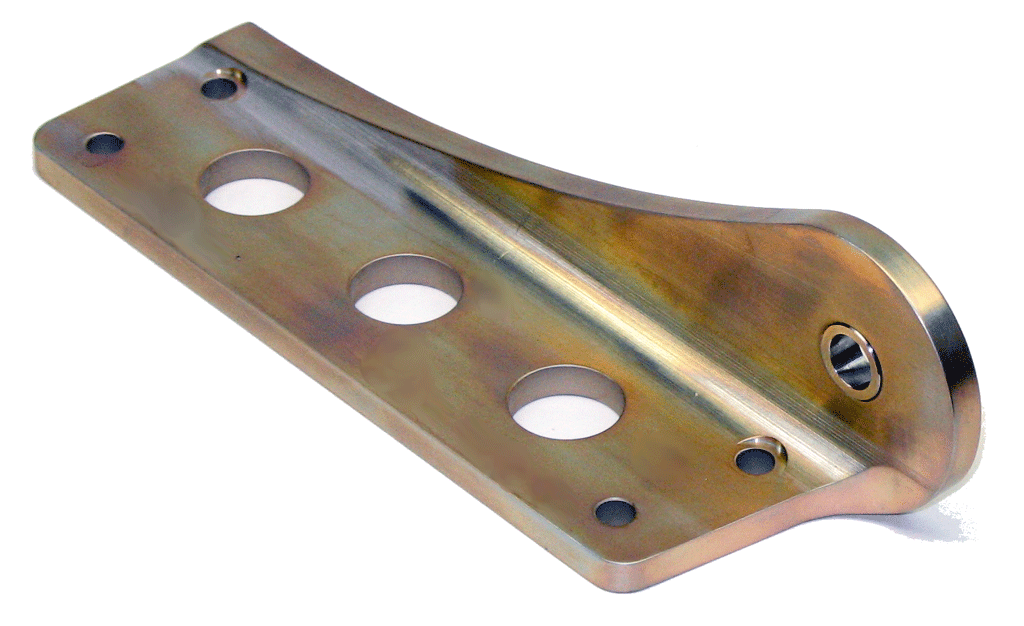

LE-MGA-LR/1278
Left Rear
Long-ez Main Gear
Attach Bracket
Location:
/Long-ez Parts/Chapter 09 Main Landing Gear & Landing Brake
Price:
$98.50 (1 required)
Product Information:
1/4" 6061 alloy extrusion.
Value added features:
CNC machined, abrasive blasted on fuselage mounting side, alodined,
stainless steel bushing in trunion bolt hole. Mounting hole is raised
0.4" per CP27, pg 7, LPC #45 REF plans pg 9-3.
|
|
 |

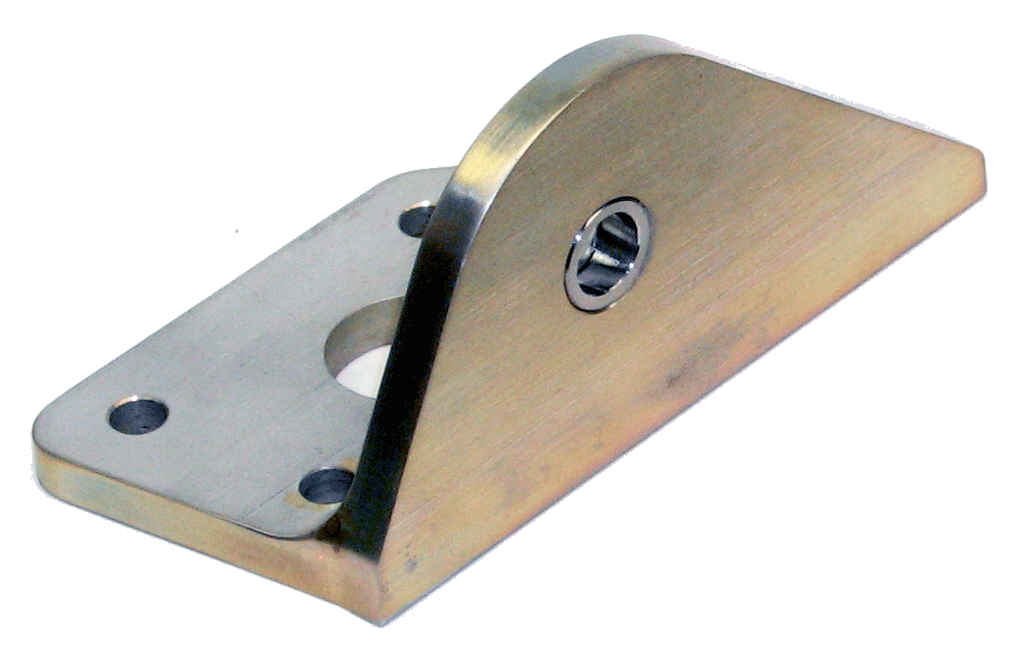

LE-MGA-RF/1279
Right
Front
Long-ez Main Gear
Attach Bracket
Location:
/Long-ez Parts/Chapter 09 Main Landing Gear & Landing Brake
Price:
$76.50 (1 required)
Product Information:
1/4" 6061 alloy extrusion.
Value added features:
CNC machined, abrasive blasted on fuselage mounting side, alodined,
stainless steel bushing in trunion bolt hole. Mounting hole is raised
0.4" per CP27, pg 7, LPC #45 REF plans pg 9-3.
|
|
 |

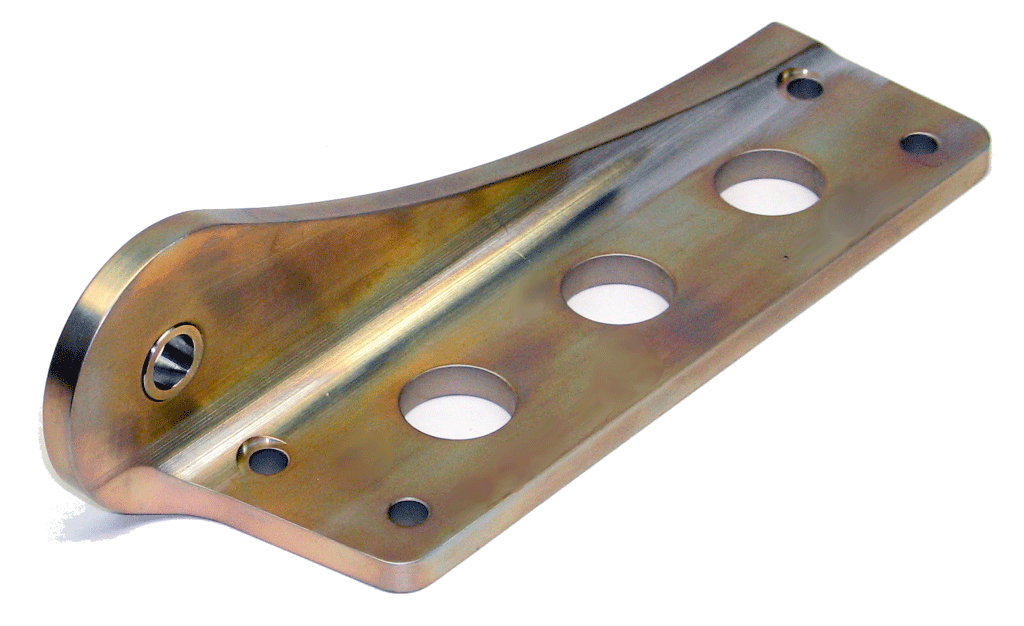

LE-MGA-RR/1277
Right Rear
Long-ez Main Gear
Attach Bracket
Location:
/Long-ez Parts/Chapter 09 Main Landing Gear & Landing Brake
Price:
$98.50 (1 required)
Product Information:
1/4" 6061 alloy extrusion.
Value added features:
CNC machined, abrasive blasted on fuselage mounting side, alodined,
stainless steel bushing in trunion bolt hole. Mounting hole is raised
0.4" per CP27, pg 7, LPC #45 REF plans pg 9-3.
|
|
 |

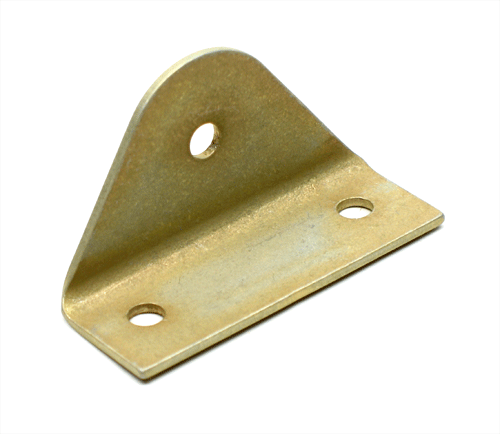

CZLB-18/1043
Landing Brake Bellhorns
Location:
/Long-ez Parts/Chapter 09 Main Landing Gear & Landing Brake
Price:
$8.14 (2 required)
Product Information:
2024-T3 aluminum
Value
added features:
Alodined
|
Chapter
10 |
Roncz Canard Assembly |
|
 |

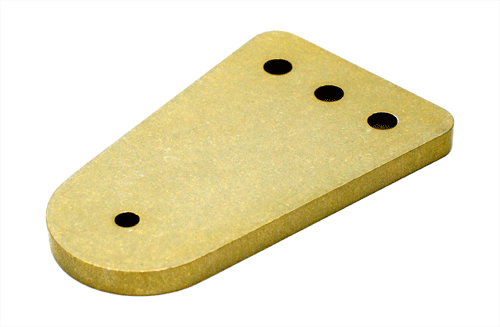

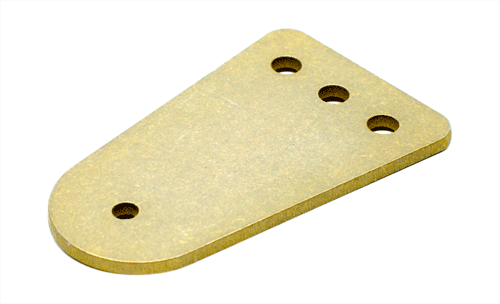

NC-CLT/1003
Lift Tab
Location:
/Long-ez Parts/Chapter 10 Canard Assy
Price:
$8.25 (2 required)
(nutplate sold seperately)
Product Information:.125"
2024-T3 aluminum. Roncz Canard. For new construction
(has lower hole in place).
Value
added features:
Alodined
|
|
 |
CG-NC-CLT/1053
Lift Tab-HD
-not available
Location:
/Long-ez
Alternative Parts/Chapter 10 Canard Assy
Price:
$12.50 (2 required)
(nutplate sold seperately)
Product Information:
.250" 2024-T3. Roncz Canard. New construction (has
lower hole)
Value
added features:
Alodined.
|
|
 |

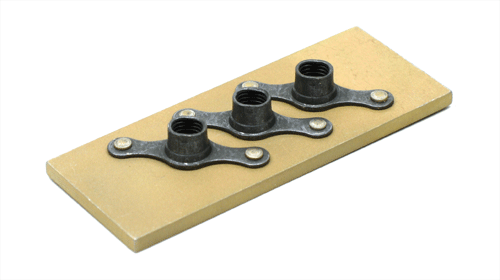

CG-NC-LTNP/1092
Lift Tab Nutplate Assy
Location:
/Long-ez Parts/Chapter 10 Canard Assy
Price:
$15.00
(2
required)
Product Information:
.125" 2024-T3 laser cut nutplate. For Roncz Canard
Value
added features:
Part was not previously offered assembled. Sandblasted for adhesion and
alodined. With (3) MS21047-L4 anchor nuts riveted in place
|
Chapter
11 |
Roncz Canard Elevator Assembly |
|
 |

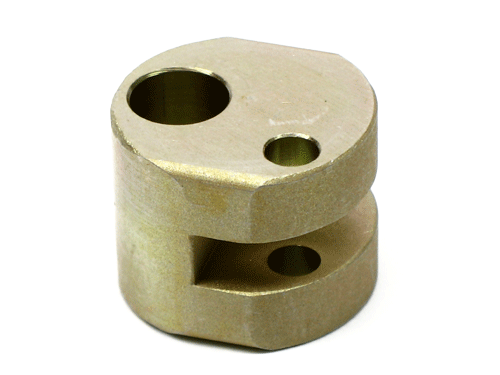

NC-2/1001
Hinge Insert
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$20.60 (Cozy 4 required, Long-Ez 5 required)
Product Information:
2024-T3 aluminum. For Roncz Canard
Value
added features:
CNC machined, sandblasted one surface, alodined. The four "corners" have
been machined at the same radius where the insert is placed in the
rectangular hole machined in the torque tube. Previously the builder was
required to file these corners off themselves. |
|
 |

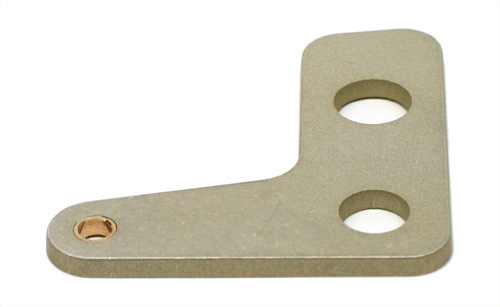

NC-3/1002
Hinge Plate Assembly
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$7.36 (5 required)
Product Information:
.125" 2024-T3 aluminum, water jet cut, and a bronze bushing pressed in
place. For Roncz Canard
Value
added feature:
selectively abrasive blasted, alodined
|
|
|
NC-3a/1255
Hinge Plate Assembly
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$15.00 (2 required)
Product Information:
.125" 2024-T3 aluminum, water jet cut, and a bronze bushing pressed in
place. For Roncz Canard
Value
added feature:
selectively abrasive blasted, alodined
|
|
 |

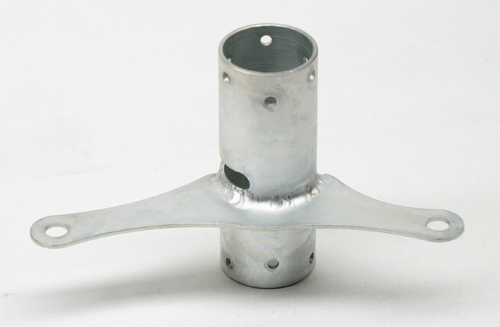

NC-5a/1100
Pitch Trim Bellcrank
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$60.00 (1 required )
Product Information:4130-N
steel parts laser and CNC machined, TIG welded. For Roncz Canard
Value
added feature:
cadmium plated
|
|
 |

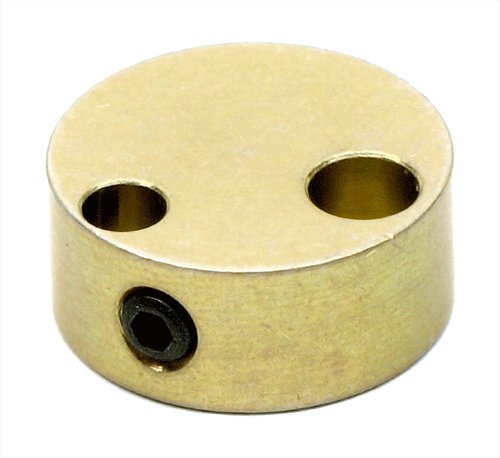

NC-6/1012
Torque Tube End Plug
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$15.95 (2 required)
Product Information:
2024-T3 aluminum. For Roncz Canard
Value
added features:
CNC machined, alodined, also includes set screw. |
|
 |

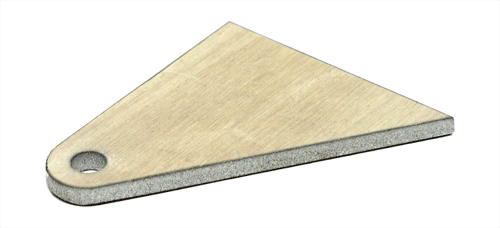

NC-7/1013
Hinge Jig
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$4.18 (2 required)
Product Information:
5052 aluminum, Roncz Canard
Value
Added Features:
CNC abrasive waterject cut
|
|
 |

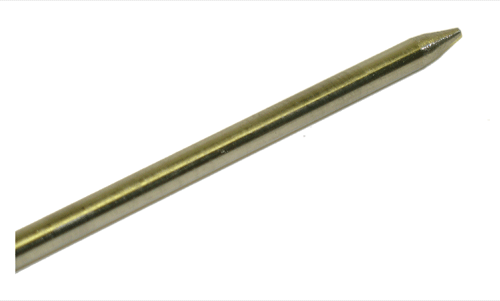

NC-8/1016
Hinge Pin
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$15.30 (2 required)
Product Information:
3/16" OD x 61" long stainless steel. For Roncz Canard
|
|
 |

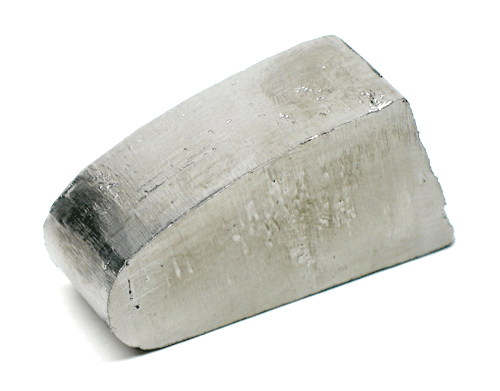

CS-10/1018
Counterbalance, outboard
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$9.75 (2 required)
Product Information:
molded lead weight. For Cozy & Long-Ez Roncz Canard
Value
Added Features:
Molded from pure lead for highest density
|
|
 |

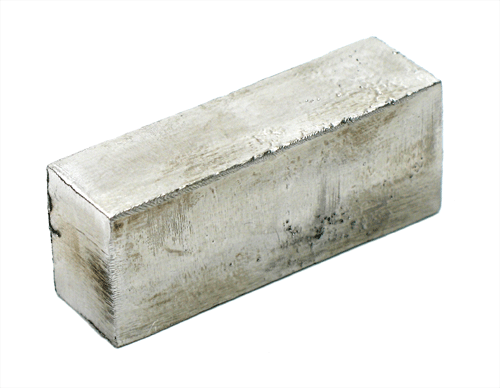

CS-11/1017
Counterbalance, inboard
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$7.05 (2 required)
Product Information:
Molded lead weight. For Cozy & Long-Ez Roncz Canard
Value
Added Features:
Molded from pure lead for highest density.
|
|
 |

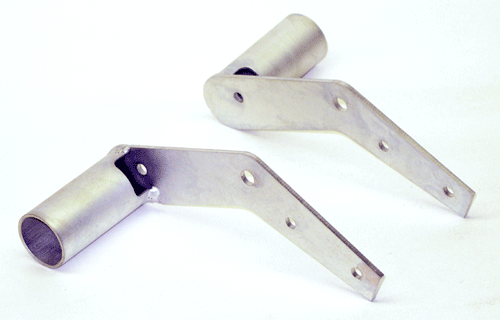

NC-12 Left & Right/xxxx
Torque Tube Bellhorn, L & R
Location:
/Long-ez Parts/Chapter 11 Elevator Assy
Price:
$52.00 ea (left and right required)
Product Information:
4130-N steel weldment. For Long-Ez
Value
Added Features:
cadmium plated.
|
|
 |
MKNC-12A Left/1010
Torque Tube Offset, Left
Location:
/Long-ez
Alternative Parts/Chapter 11 Elevator Assy
Price:
$160.00 (left and right required)
Product Information:
4130-N steel weldment. For Cozy & Long-Ez While not a "per plans" part
in the Long-Ez, these parts solve the serious draft problem in the Long-Ez
where the eccentric moving elevator torque tubes come through the
fuselage walls. This is accomplished by shifting a portion of the
mechanism to be concentric with the hinge axis.
Value
Added Features:
This part has traditionally been made up of six individual parts welded
together, we have reduced this to four CNC machined and laser cut parts.
These are then TIG welded in a precision fixture and cadmium plated.
|
|
|

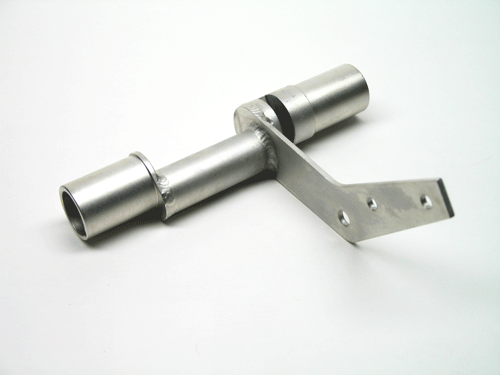

MKNC-12A Right/1011
Torque Tube Offset, Right
Location:
/Long-ez
Alternative Parts/Chapter 11 Elevator Assy
Price:
$160.00 (left and right required)
Product Information:
4130-N steel weldment. For Cozy & Long-Ez While not a "per plans" part
in the Long-Ez, these parts solve the serious draft problem in the Long-Ez
where the eccentric moving elevator torque tubes come through the
fuselage walls. This is accomplished by shifting a portion of the
mechanism to be concentric with the hinge axis.
Value
Added Features:
This part has traditionally been made up of six individual parts welded
together, we have reduced this to four CNC machined and laser cut parts.
These are then TIG welded in a precision fixture and cadmium plated.
|
|
 |

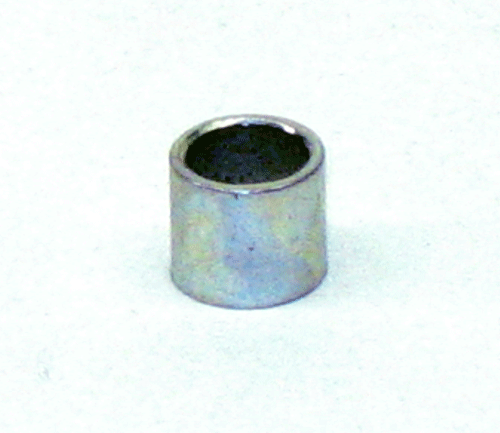

NC-13/1260
Bushing, Elevator Bellcrank
Location:
/Long-Ez
Parts/Chapter 11, Elevator Assembly
Price:
$5.00 (2 required)
Product Information:
4130-N steel
Value
Added Features:
cadmium plated
|
|
 |

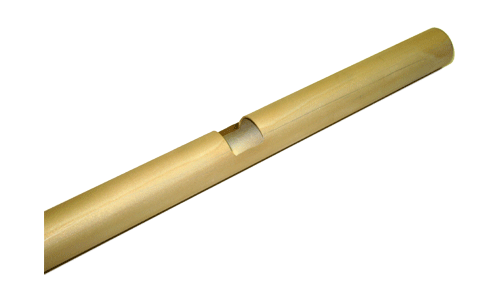

NCTT-L/1025|
Elevator Torque Tube, Left
Location:
/Long-Ez
Parts/Chapter 11, Elevator Assembly
Price:
$223.64 (1 required)
Product Information:
for Long-Ez Roncz canard. 2024-T3 aluminum, alodined
Value
Added Features:
Now CNC machined.
Abrasive blasted in bonding area for adhesion prior to plating
|
|
|
NCTT-R/1026|
Elevator Torque Tube, Right
Location:
/Long-Ez
Parts/Chapter 11, Elevator Assembly
Price:
$179.00 (1 required)
Product Information:
for Long-Ez Roncz canard. 2024-T3 aluminum, alodined
Value
Added Features:
Now CNC machined.
Abrasive blasted in bonding area for adhesion prior to plating
Note:
May also be used to build long canard for Cozy Mk-IV (2 required)
|
|
|
CG-TTSP/1117
Torque Tube Spool Piece
Location:
/Long-ez
alternative Parts/Chapter 11 Elevator Assy
Price:
$45.00(1 required)
Product Information:
1.00" OD x .035" wall x 30.2" long 2024-T3 aluminum tube.
When Mk-IV type elevator offsets are used with the Roncz Canard; this
tube fits between elevator offsets.
Value
Added Feature:
Alodined.
|
Chapter
12 |
Canard Installation |
|
 |

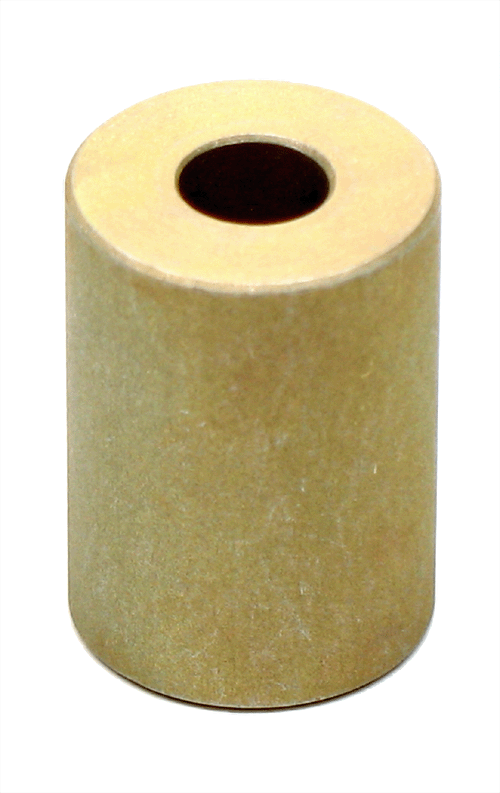

CNL/1023
Aluminum Bushing
Location:
/Long-ez Parts/Chapter 12 Canard Installation
Price:
$6.25 (2 required)
Product Information:
This is for Roncz Canard mounting bolt through F-22 in Long-Ez.
Value
Added Features:
Abrasive blasted and alodined.
|
|
 |

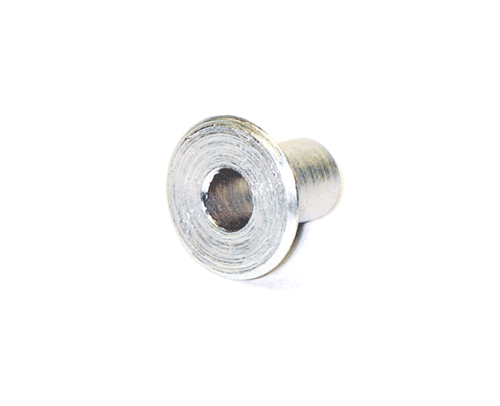

CN2/1019
Steel Bushing
Location:
/Long-ez Parts/Chapter 12 Canard Installation
Price:
$7.50 (2 required)
Product Information:
4130-N steel. Sockets for the incidence/locating pins on Long-Ez
Roncz Canard.
Value
Added Features:
Cadmium plated |
Chapter
13 |
Nose & Nose Gear |
|
 |

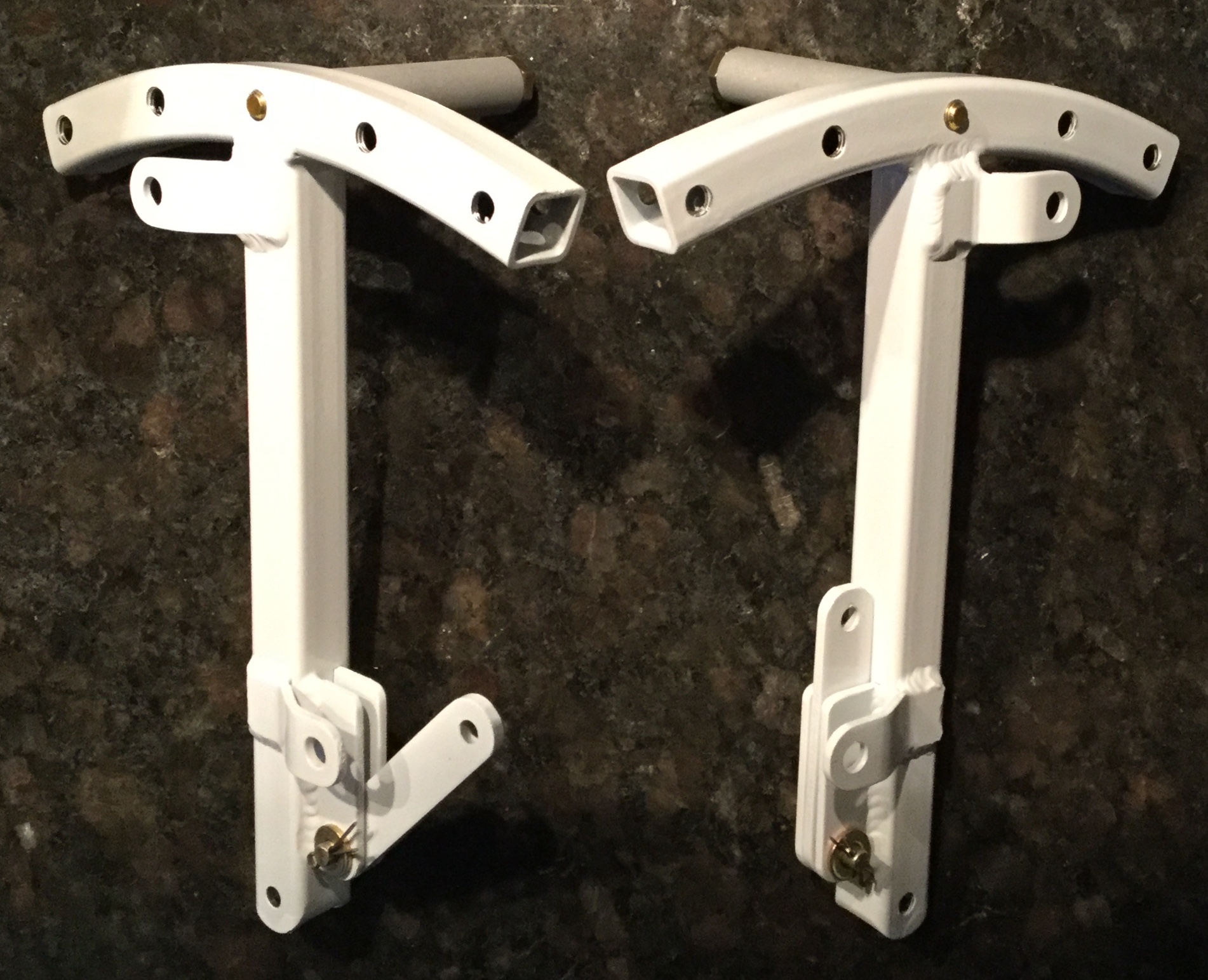

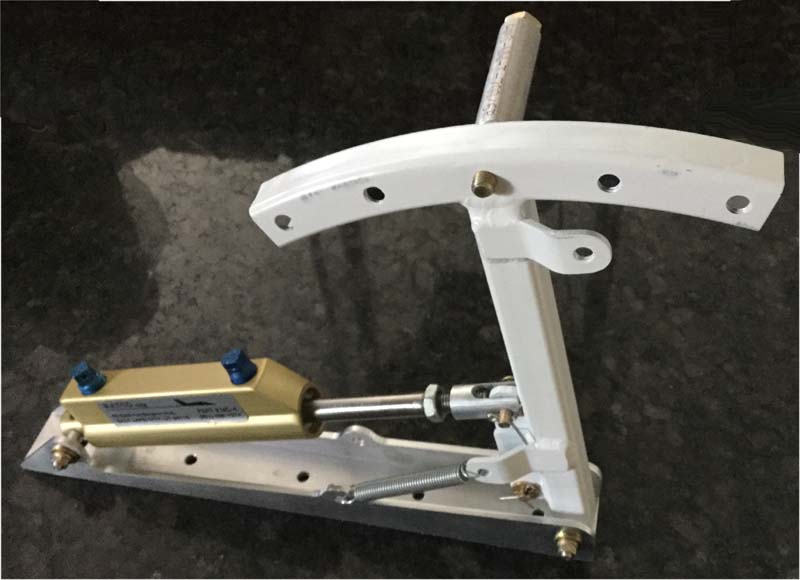

CG-RP-LE/1521
Rudder Pedals, Long-ez
Location:
/Long-ez,
Variease Parts/Chapter 13 Nose & Nose Gear
Price:
$250.00 (1 set required)
Product Information:
Adjustable rudder pedals.
Click on image for larger picture.
|
|
 |

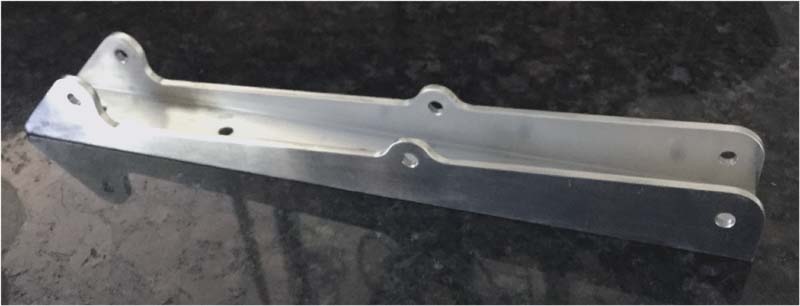

CG-RP-LE/1521
Master Cylinder mounting braket, Long-ez
Location:
/Long-ez,
Variease Parts/Chapter 13 Nose & Nose Gear
Price:
$35.00 (2 required)
Product Information:
For nose mounted lay-down Matco MC4 master cylinders used with our Adjustable rudder pedals.
Click on image for larger picture.
|
|
 |

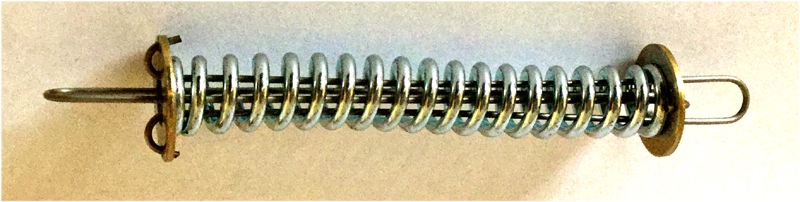

CG-ROS/1527
Rudder Over-travel Spring Assembly
Location:
/Long-ez, Variease, Cozy Parts/Chapter 13 Nose & Nose Gear
Price:
$22.00 (2 required)
Product Information:
provides proper rudder and pedal travel
Click on image for larger picture.
|
|
 |
CG-NG-53/1296
Gear, VENGR manual nose retract
Location:
/Long-ez,
Variease Parts/Chapter 13 Nose & Nose Gear
Price:
$250.00 (1 required)
Product Information:
Bronze worm shrunk fit to aluminum hub, replaces NG-53 worm and NG-56
spacer.
Value
Added Features:
Click on image for larger picture.
|
|
 |
CG-NWB/1216

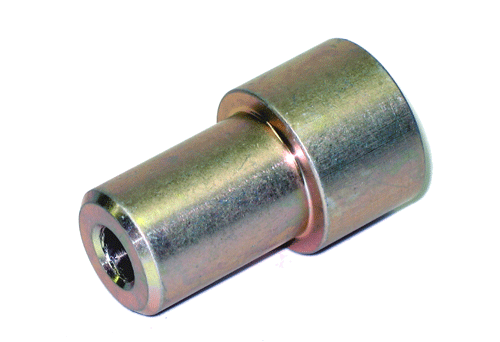

NG-1 Axel Bushing,
Gerdes Nosewheel
Location:
/Long-ez Parts/Chapter 13 Nose & Nose Gear
Price:
$16.00 (2 required)
Product Information:
NG-1 bushing for Long-ez Gerdes wheel
|
|
|
CG-NWB-M/1220
NG-1 Axel Bushing, Matco Nosewheel
Location:
/Long-ez Parts/Chapter 13 Nose & Nose Gear
Price:
$16.00 (2 required)
Product Information:
NG-1 bushing for Long-ez Matco wheel
|
|
|
CG-NWB-G/
NG-1 Axel Bushing, Grove Nosewheel
Location:
/Long-ez Parts/Chapter 13 Nose & Nose Gear
Price:
$16.00 (2 required)
Product Information:
NG-1 bushing for Long-ez Grove nosewheel
|
|
 |
CG-NWA/1213
Gerdes Nosewheel
Assembly
Location:
/Long-ez Parts/Chapter 13 Nose & Nose Gear
Price:
$130.00 (1 required)
Product Information:
NG-1's shown must be purchased separately below.
Value
Added Features:
Click on image for details about nosewheels.
|
|
 |
CG-FCH/1234
Forward
Compartment Hinge
Location:
/Long-EZ Parts/Chapter 13 Nose & Nose Gear
Price:
$24.00 (2 required)
Product Information:
6061-T6 aluminum.
Value
Added Features:
Parts are patterned after Berkut style FCH. Parts were laser cut then
tumble deburred, not alodined in case you wish to polish.
|
Chapter
14 |
Center Section Spar |
|
|
|
Chapter
15 |
Firewall Assembly |
|
 |

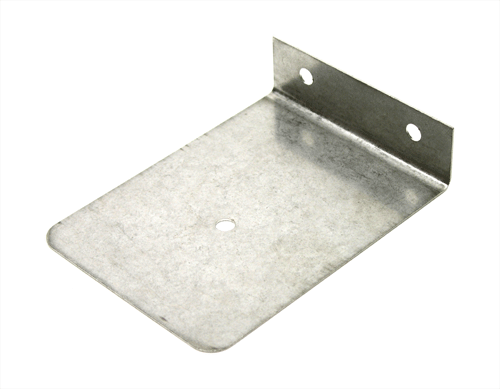

MKCS-71/1036
Rudder Cable Pulley Bracket, 90 deg
Location:
/Long-ez Parts/Chapter 15 Firewall
Price:
$7.25 (4 required)
Product Information:
Stainless steel. For Cozy and Long-Ez with forward mounted master
cylinders
Two required for each pulley, two pair required per plane.
Value
Added Features:
Laser cut
|
|
 |

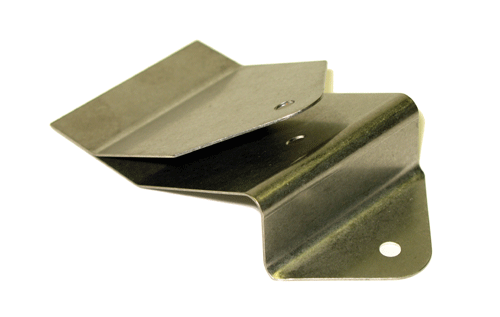

CS-72/1140
Rudder Cable Pulley Bracket, 29 deg
Location:
/Long-ez Parts/Chapter 15 Firewall
Price:
$12.14 (2 sets required)
Product Information:
Stainless steel. For Cozy and Long-Ez with forward master cylinders
These are provided as a two piece set, two sets required.
Value
Added Features:
Laser cut
|
Chapter
16 |
Control System |
|
 |

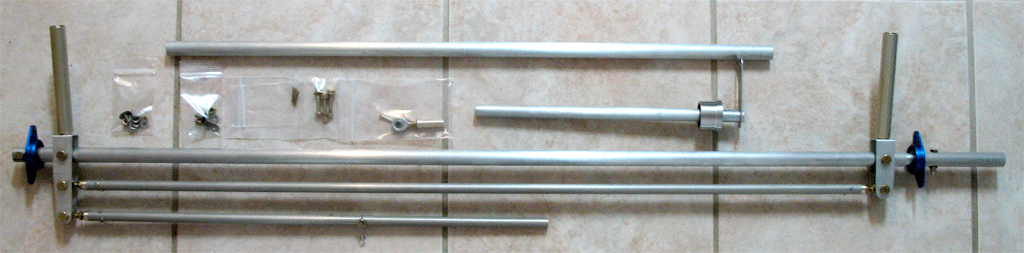

CG-LECS. LE/1265
Custom Control System Assembly
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$699.00 (1 required)
Product Information:
Complete ball bearing control system from elevator connection to
firewall bellcrank. (does not include universal joint)
Contact us for details.
|
|
 |

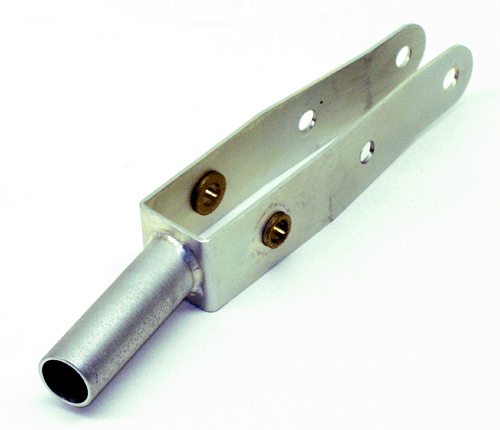

CZSA/1024
Front
Stick Assembly
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$69.00 (1 required)
Product Information:
4130-N steel, cadmium plated with 2 Oilite bronze bushings pressed in
place.
|
|
 |

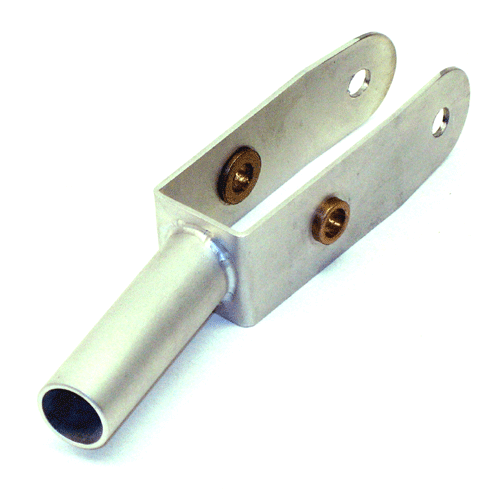

CZSA-2/1267
Rear
Stick Assembly
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$66.20 (1 required)
Product Information:
4130-N steel, cadmium plated with 2 Oilite bronze bushings pressed in
place.
|
|
|
CS-104
/1155
Control Stick Tube
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$5.00 (2 required)
Product Information:
6061-T6 aluminum. Fits on end of stick fork assy to mount grips.
Value
Added Features:
alodined
|
|
 |
CS-1A
/1052
Pushrod Threaded Insert, Aluminum
Location:
/Cozy
Mk-IV Parts/Chapter 16 Control System
Price:
$8.00 (4 required)
Product Information:
2024 Aluminum, AN-4 thread, Alodine plated
Value
Added Features:
Length has been increased slightly to allow rod ends to be screwed in
deeper if necessary.
Note:
can be used in Long-Ez as well
|
|
|

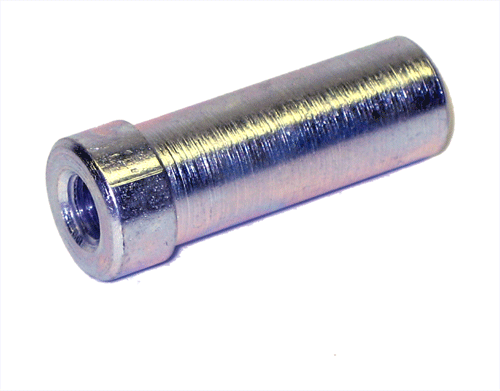

CS-50
/1029
Pushrod Threaded Insert, Steel
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$8.31 (8 required)
Product Information:
Steel. 4130-N steel, AN-4 thread, cadmium plated
Value
Added Features:
Length has been increased slightly to allow rod ends to be screwed in
deeper if necessary.
|
|
 |

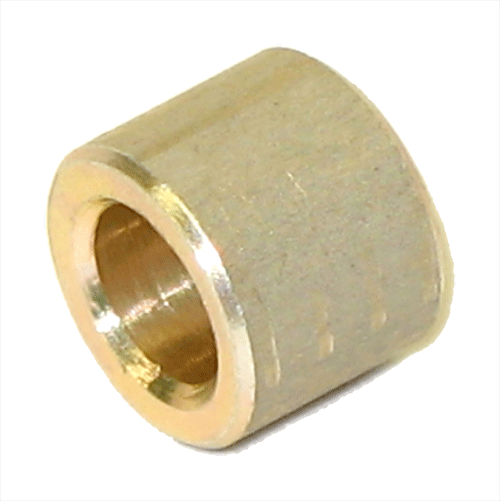

CS-17
/1032
Rudder Pedal Thimble Spacer
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$5.00 (2 required)
Product Information:
2024-T3 aluminum, alodined
|
|
 |

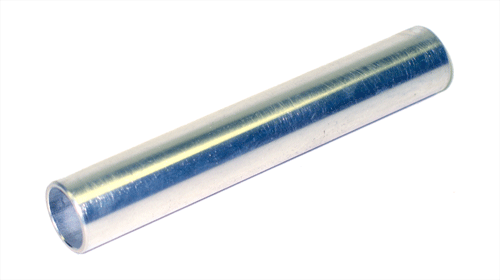

CS-115
/1107
Tube, Rear Seat Bearing
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$5.00 (1 required)
Product Information:
4130-N steel
Value
Added Features:
5/8”diameter tube has been precision centerless ground to fit in sealed
ball bearing assembly, cadmium plated
|
|
 |
CG-CS-108/117/
/1243
Control System Bearing Assembly
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$50.00 (2 required)
Product Information:
Sealed ball bearing in anodized lightweight aluminum housing. 5/8" ID.
Use matching precision ground tubes CS-115 and CS-JSTT Joystick Torque
Tube Assemblies with these.
Value
Added Features:
Includes
Clickbond mounting hardware, see instructions on our web site.
|
|
 |

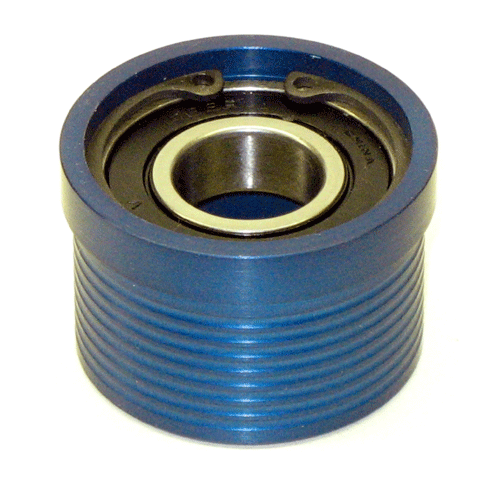

CG-CS-123/
/1196
Bearing Assembly, Firewall
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$54.00 (1 required)
Product Information:
Sealed ball bearing in anodized lightweight aluminum housing. 5/8" ID.
Use matching precision ground control torque tube bellcranks CS-124-L&R with these.
Value
Added Features:
Bearing installed in
housing with snap ring.
|
|
 |

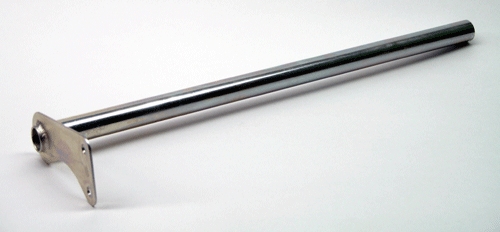

MKCS124,R
/1028
Control Torque Tube Bellcrank
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$49.00 (1 required)
Product Information:
4130-N steel, cadmium plated
Value
Added Features:
5/8”diameter tube has been precision centerless ground to fit in sealed
ball bearing assembly, cadmium plated.
|
|
 |

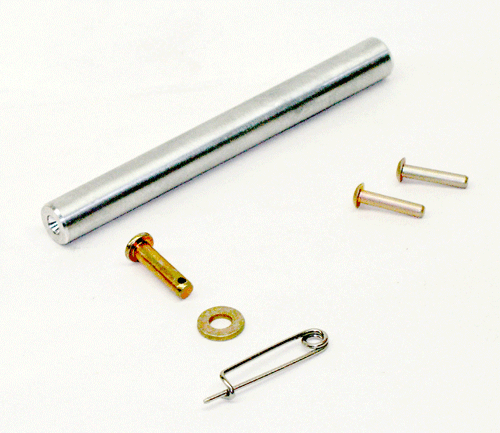

CG-CS-181-QDK
/1246
Pushrod
Quick Disconnect Kit
Location:
/Long-ez Parts/Chapter 16 Control System
Price:
$18.35 (3 required)
Product Information:
2024-T3 aluminum
Value
Added Features:
clevis pin, safety clip, washer and rivets included.
|
|
 |

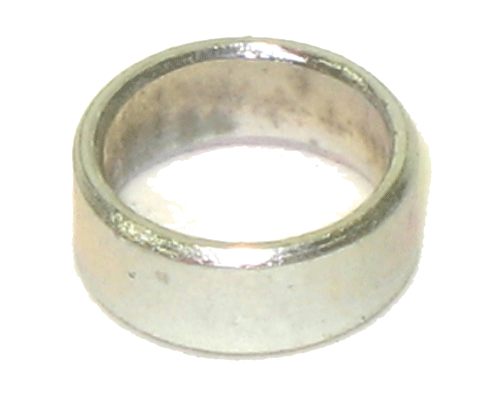

CS-201
/1035
Bushing
Location:
Long-ez Parts/Chapter 16 Control System
Price:
$5.00 (8 required)
Product Information:
4130-N steel, cadmium plated. Used to space spherical rod ends away from
control sticks etc
|
|
 |

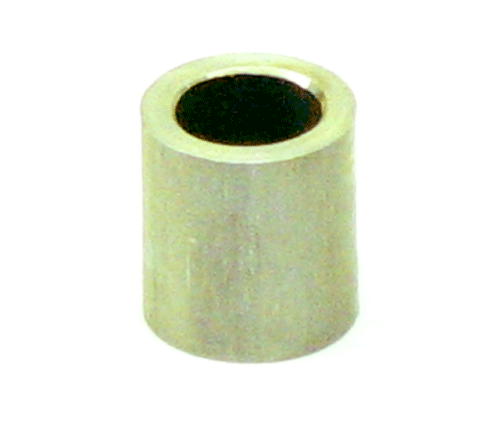

CS-202
/1261
Spacer, Elevator Bellcrank
Location:
Long-ez Parts/Chapter 16 Control System
Price:
$5.00 (2 required)
Product Information:
2024-T3 aluminum
|
Chapter
17 |
Trim & Landing Brake |
|
 |

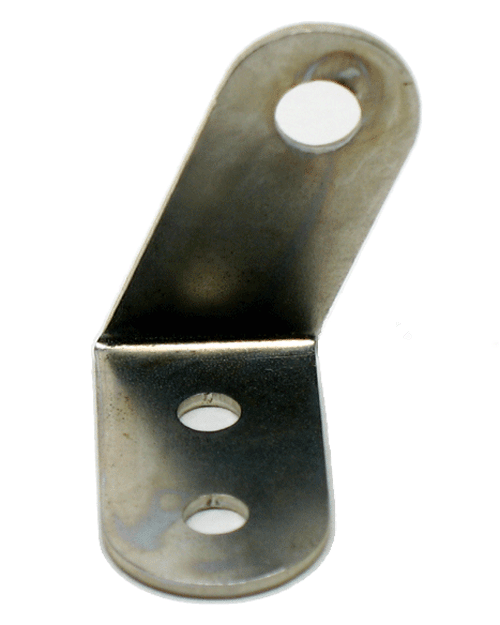

RT-2L
/1046
Roll Trim Bracket, Left
Location:
/Long-ez Parts/Chapter 17 Trim and Landing Brake
Price:
$4.50 (1 required)
Product Information:
4130-N steel, cadmium plated
|
|
 |

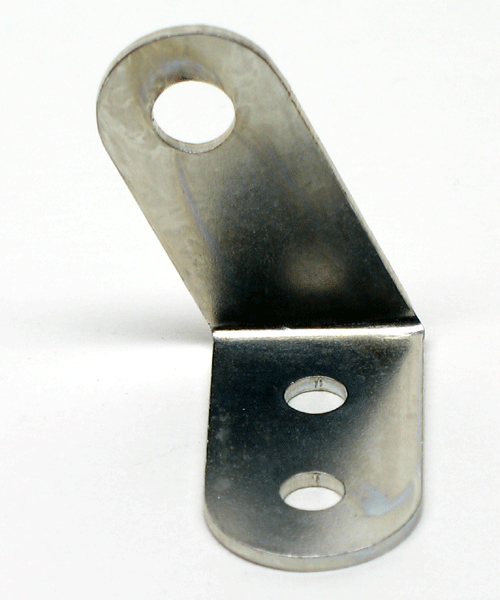

RT-2R
/1047
Roll Trim Bracket, Right
Location:
/Long-ez Parts/Chapter 17 Trim and Landing Brake
Price:
$4.50 (1 required)
Product Information:
4130-N steel, cadmium plated
|
Chapter
18 |
Canopy |
Chapter
19 |
Wings |
|
 |

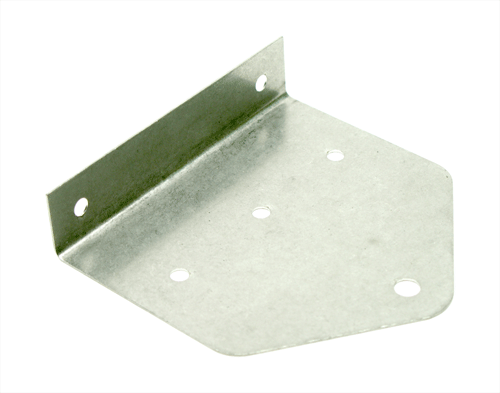

CS-127/1076|
Bracket, Aileron Bellcrank Linkage
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$7.60 (4 required)
Product Information:
304 stainless steel
Value
Added Features:
holes
for end stops added. Additional hole added for pinning aileron linkage
while centering control surfaces and sticks.
|
|
 |
CS-128/1141|
Bellcrank Aileron Linkage
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$68.00 (2 required)
Product Information:
2024-T3 aluminum, alodined, has ball bearing assembly riveted in place
Value
Added Features:
Additional hole added for pinning aileron linkage while centering
control surfaces and sticks. Uses MM-4 rod ends
|
|
 |

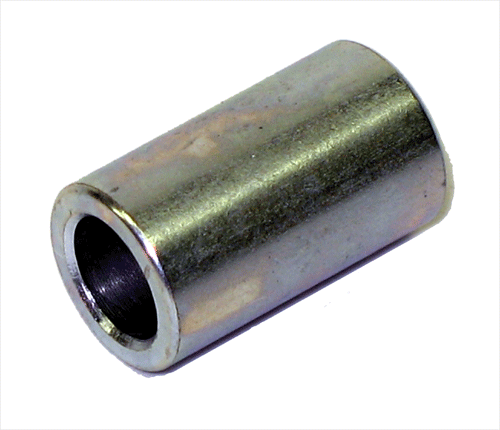

CS-131/1078|
Spacer, Aileron Bellcrank Linkage
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$5.38 (2 required)
Product Information:
4130-N steel, cadmium plated
|
|
 |
CS-132/1079|
Bellcrank, Aileron Tube
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$50.00 (2 required)
Product Information:
4130-N steel, cadmium plated
Value
Added Features:
the major radius on this part is per plans, unlike the large radius on
the former Brock part (done for easier welding) that could cause
clearance issues
|
|
 |
CS-152/1101
Tube, Aileron Bellcrank Bearing,
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$5.00 (2 required)
Product Information:
4130-N steel, cadmium plated
Value
Added Features:
5/8”diameter tube has been precision centerless ground to fit in
sperical ball bearing assembly, cadmium plated
|
|
 |

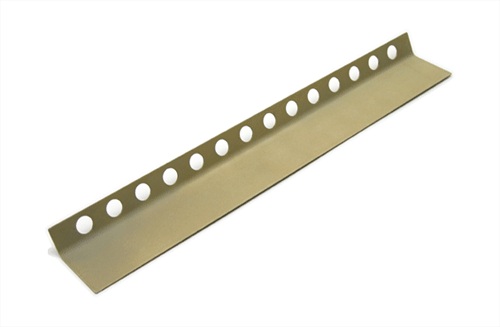

A2/1083
Bracket, Inboard Aileron Hinge Mount
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$12.95 (2 required)
Product Information:
2024-T3 aluminum, alodined
Value
Added Features:
part has been abrasive blasted in bonding area and alodined
|
|
 |

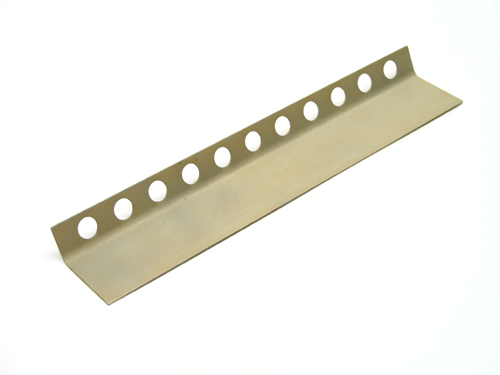

A5/1084
Bracket, Outboard Aileron Hinge Mount
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$9.62 (4 required)
Product Information:
2024-T3 aluminum, alodined
Value
Added Features:
part has been abrasive blasted in bonding area and alodined
|
|
 |
A10/1244
Tube, Aileron
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$12.00 (2 required)
Product Information:
60-61-T6 aluminum, alodined
Value
Added Features:
part has been abrasive blasted in bonding area and alodined
|
|
 |
CG-PI/1295
Insert, baggage pod mounting
Location:
/General Parts/Chapter 19 Wings
Price:
$6.57 (12 required)
Product Information:
2024-T3 aluminum 1" long x 3/8" dia, AN-3 thread thru.
Value
Added Features:
part has been knurled in bonding area
Note:
can be used in any place you need internal threads for mounting parts
can be cut shorter or partially buried in foam to give a standoff, many
uses.
|
|
 |

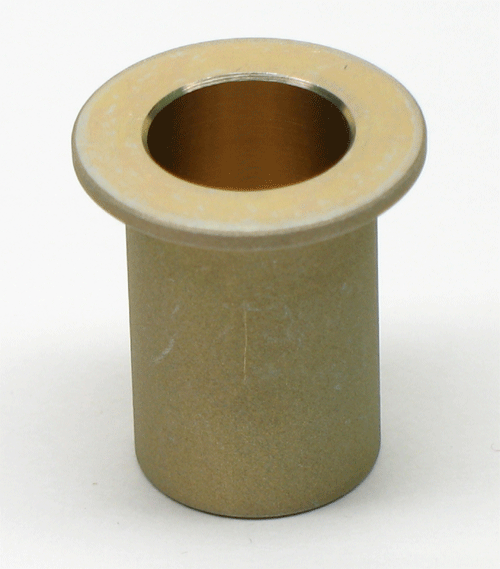

LWA-9/1085
Bushing, Wing Bolt
Location:
/Long-ez Parts/Chapter 19 Wings
Price:
$10.00 (12 required)
Product Information:
2024-T3 aluminum.
Value
Added Features:
part has been abrasive blasted in bonding area.
|
Chapter
20 |
Winglets & Rudders |
|
 |

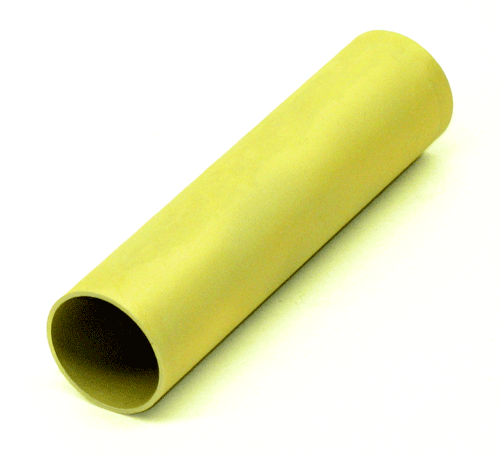

CG-RRT/1118
Rudder Return Spring Tube
Location:
/Long-ez Parts/Chapter 20 Winglets and Rudders
Price:
$6.50 (2 required)
Product Information:
2024-T3 aluminum tube
Value
Added Features:
abrasive blasted for bonding, alodined
|
|
 |

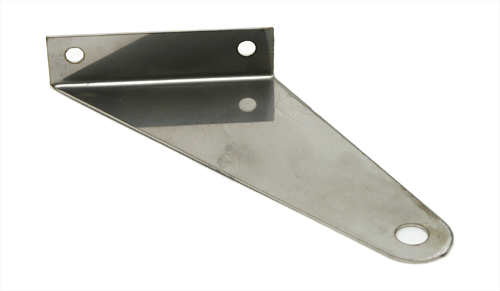

CS-301L/1087|
Rudder Horn, Left
Location:
/Long-ez Parts/Chapter 20 Winglets and Rudders
Price:
$11.00 (1 required)
Product Information:
304 stainless steel
Value
Added Features:
laser cut
|
|
 |

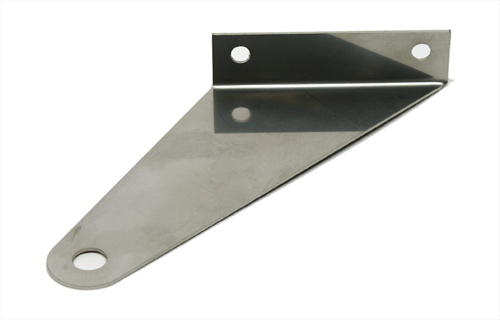

CS-301R/1088|
Rudder Horn, Right
Location:
/Long-ez Parts/Chapter 20 Winglets and Rudders
Price:
$11.00 (1 required)
Product Information:
304 stainless steel
Value
Added Features:
laser cut
|
|
 |

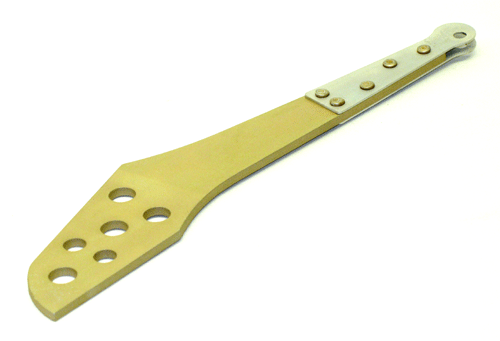

CG-HRH/1089|
Hidden Rudder Horn
Location:
/Long-ez
Alternative Parts/Chapter 20 Winglets and Rudders
Price:
$38.50 ea.
(2
required)
Product Information:
2024-T3 aluminum, alodined, 4130-N steel, cadmium plated, assembled with
rivits.
Value
Added Features:
Laser cut parts. Selectively abrasive blasted in bonding area for
adhesion prior to plating. Assembly includes clevis pin and cotter pin.
|
Chapter
23 |
Engine Installation |
|
 |

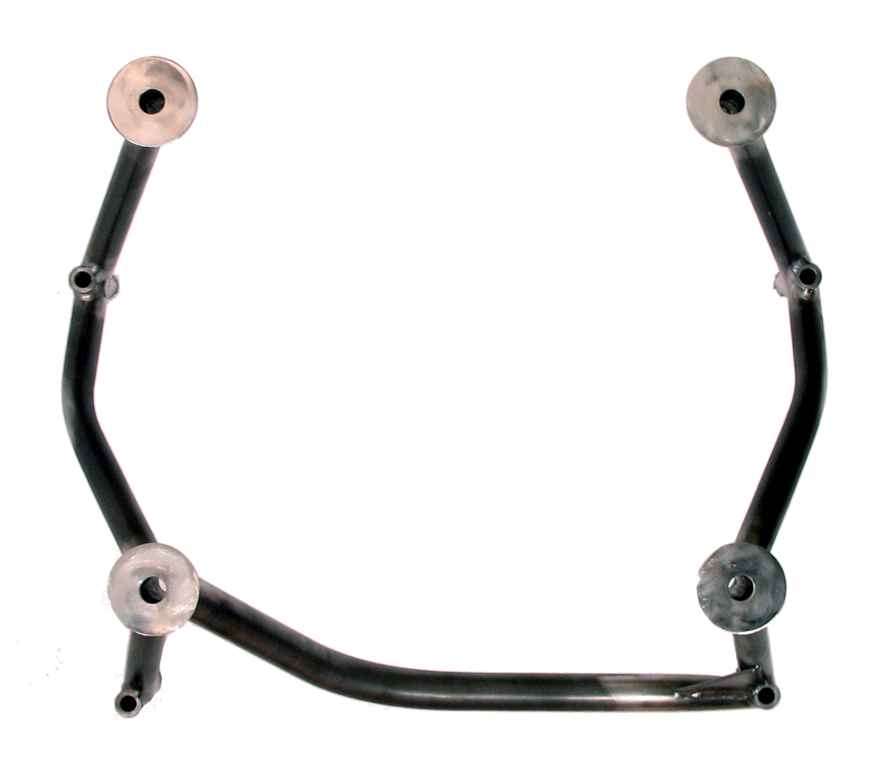

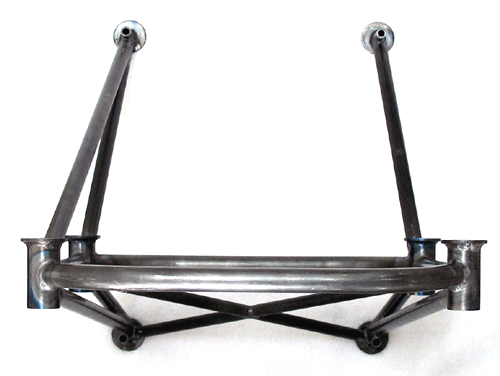

EM-LE-1 Long-EZ Heavy Duty Dynafocal Type 1 Engine Mount
Location: /Long-EZ
Parts/Chapter 23 Engine Installation
Price: $1350.00 (1 required)
Product Information: 4130-N steel tubing. This mount is for
per-plans Lycoming installation of 0-320 & 0-360 engines with 30 degree
mounting lugs (typical) Uses Lord J-7402-24 (in stock at Aircraft Spruce
#07-01115) vibration isolators.
Value
Added Features:
Click image for larger picture; has two additional upper tubes.
Call for
availability
|
|
|
EM-LE-2 Long-EZ Heavy Duty Dynafocal Type 2 Engine Mount
Location: /Long-EZ
Parts/Chapter 23 Engine Installation
Price: $1350.00 (1 required)
Product Information: 4130-N steel tubing. This mount is for
per-plans Lycoming installation of 0-290 & 0-320 engines with 18
degree mounting lugs. Uses Lord J-7402-24 (in stock at Aircraft Spruce
#07-01115) vibration isolators.
Value
Added Features:
Click image for larger picture; has two additional upper tubes.
Call for
availability
|
|
 |
EM-LE-C Long-EZ Heavy Duty Conical Engine Mount
Location: /Long-EZ
Parts/Chapter 23 Engine Installation
Price: $1000.00 (1 required)
Product Information: 4130-N steel tubing. This mount is for
per-plans Lycoming installation of 0-290 & 0-320 engines with
conical mounting lugs (typical of 0-290)
Click image for larger picture
Call for
availability
|
|
 |
EM-LERX-13B Long-EZ Heavy Duty 13B/Renesis Engine Mount
Location: /Long-EZ
Parts/Chapter 23 Engine Installation
Price: $1250.00 (1 required)
Product Information: 4130-N steel tubing. This mount is for
mounting a two rotor engine. Requires matching engine bed mounting
plate. Fits CCI bed plates.
Click image for larger picture
Call for
availability
|
|
